1.5mm TPS 2C+E Flat TPS | 100m
STOCK QUANTITY MAY VARY, SUBJECT TO AVAILABILITY. PLEASE CONTACT US FOR ACCURATE STOCK QUANTITY & TRADE PRICING.
Got questions?
Feel free to get in touch
Couldn't load pickup availability

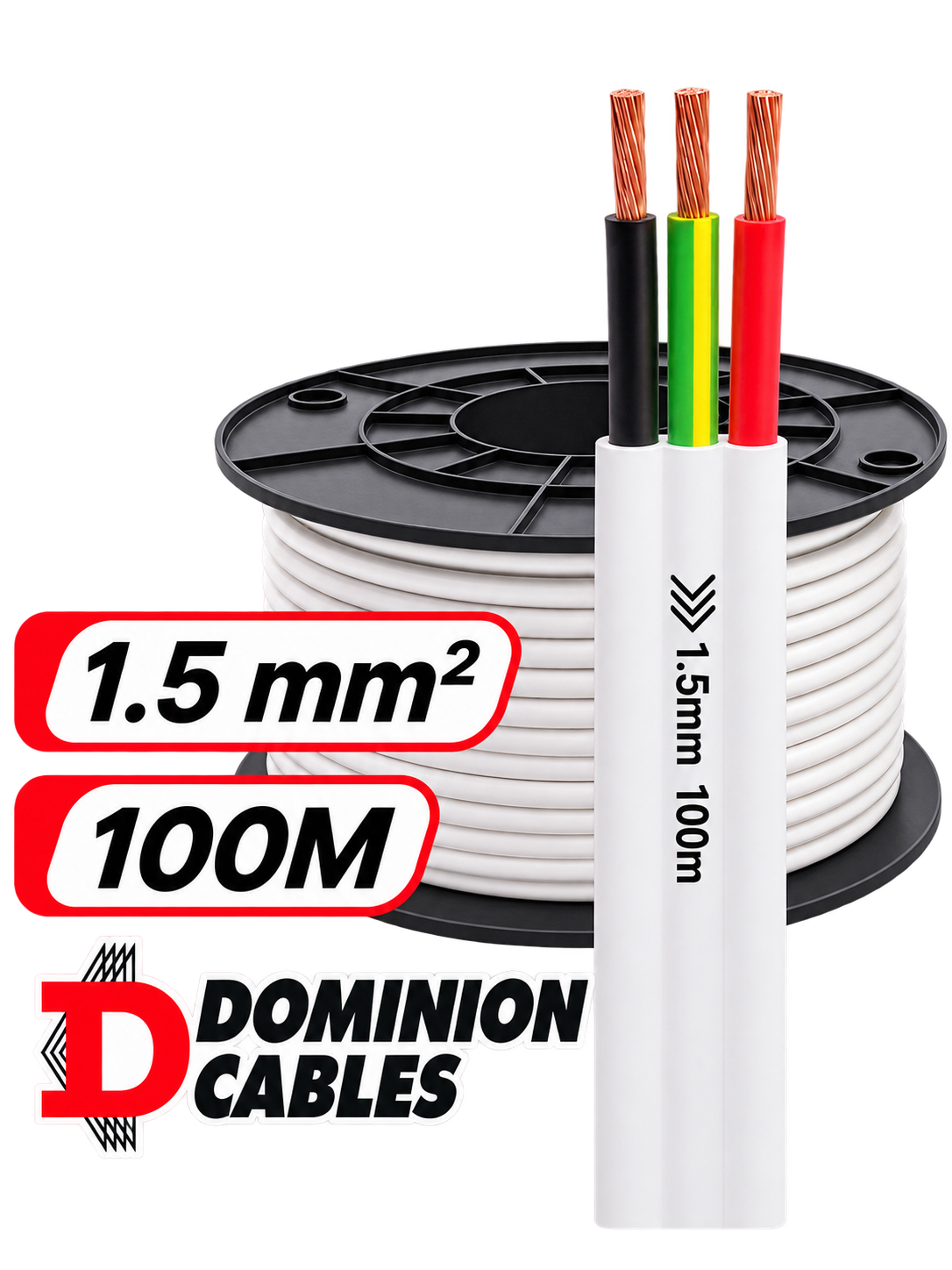

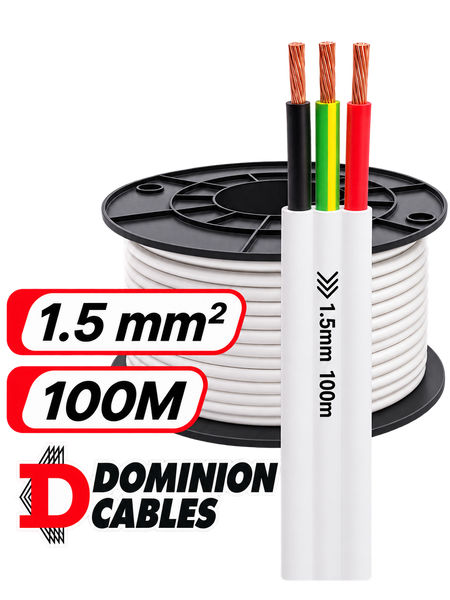

1.5mm TPS 2C+E Flat Cable 100m | Dominion Cables
Dominion Cables 1.5mm² 2C+E flat TPS cable is a reliable fixed-wiring option for residential, commercial and industrial electrical installations. Supplied on a 100m reel, this twin-and-earth cable features stranded copper conductors, PVC V90 insulation and a white PVC outer sheath. Rated at 450/750V and manufactured to AS/NZS 5000.2, it is commonly used for lighting and other suitable fixed-wiring circuits. Cable selection should always account for circuit load, installation method, voltage drop, environmental conditions and applicable New Zealand electrical requirements.
1.5mm TPS Cable Specifications
| Specification | Details |
|---|---|
| Brand | Dominion Cables |
| Product | Flat TPS Twin & Earth |
| SKU | DC329 |
| Configuration | 2C+E / 3 conductors |
| Conductor size | 1.5mm² |
| Conductor construction | 7/0.50 stranded copper |
| Conductor material | Plain annealed copper |
| Insulation | PVC V90 |
| Core colours | Red, Black, Green/Yellow |
| Sheath | White PVC |
| Voltage rating | 450/750V |
| Reel length | 100m |
| Nominal overall dimensions | 4.7 × 10.2mm |
| Minimum installed bending radius | 65mm |
| Approximate mass | 115kg/km |
| Standard | AS/NZS 5000.2 |
Typical Applications
1.5mm² TPS cable is commonly used for lighting circuits and other suitable fixed electrical wiring in residential, commercial and industrial installations.
Dominion Cables specifies its flat TPS range for general wiring applications, including unenclosed installations, installation in conduit and underground ducts, subject to appropriate mechanical protection and the requirements of the installation.
The correct conductor size depends on the individual circuit. Load current, protective device selection, installation method, cable grouping, thermal insulation, ambient conditions, cable length and voltage drop should all be considered before installation.
Compliance & Documentation
Dominion Cables 1.5mm² flat TPS cable is manufactured to AS/NZS 5000.2 and carries a 450/750V voltage rating.
The manufacturer's technical documentation provides additional information covering conductor construction, dimensions, bending radius, electrical characteristics and installation conditions for product code DC329.
Installers should refer to the applicable New Zealand electrical standards, project specifications and manufacturer documentation when selecting and installing cable.
Delivery & Trade Orders
CoreGrid360 supplies throughout New Zealand, with freight added at checkout for most products.
Stock levels and availability can vary. For larger quantities, project requirements or repeat purchasing, contact CoreGrid360 to confirm availability and discuss project pricing.
