4.0mm TPS 2C+E Flat Cable 100m | Dominion Cables

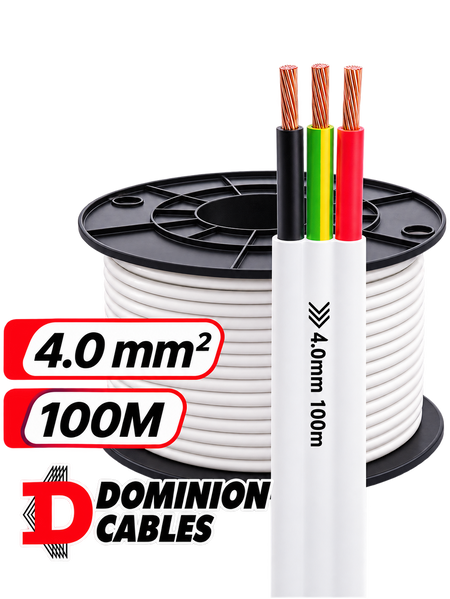

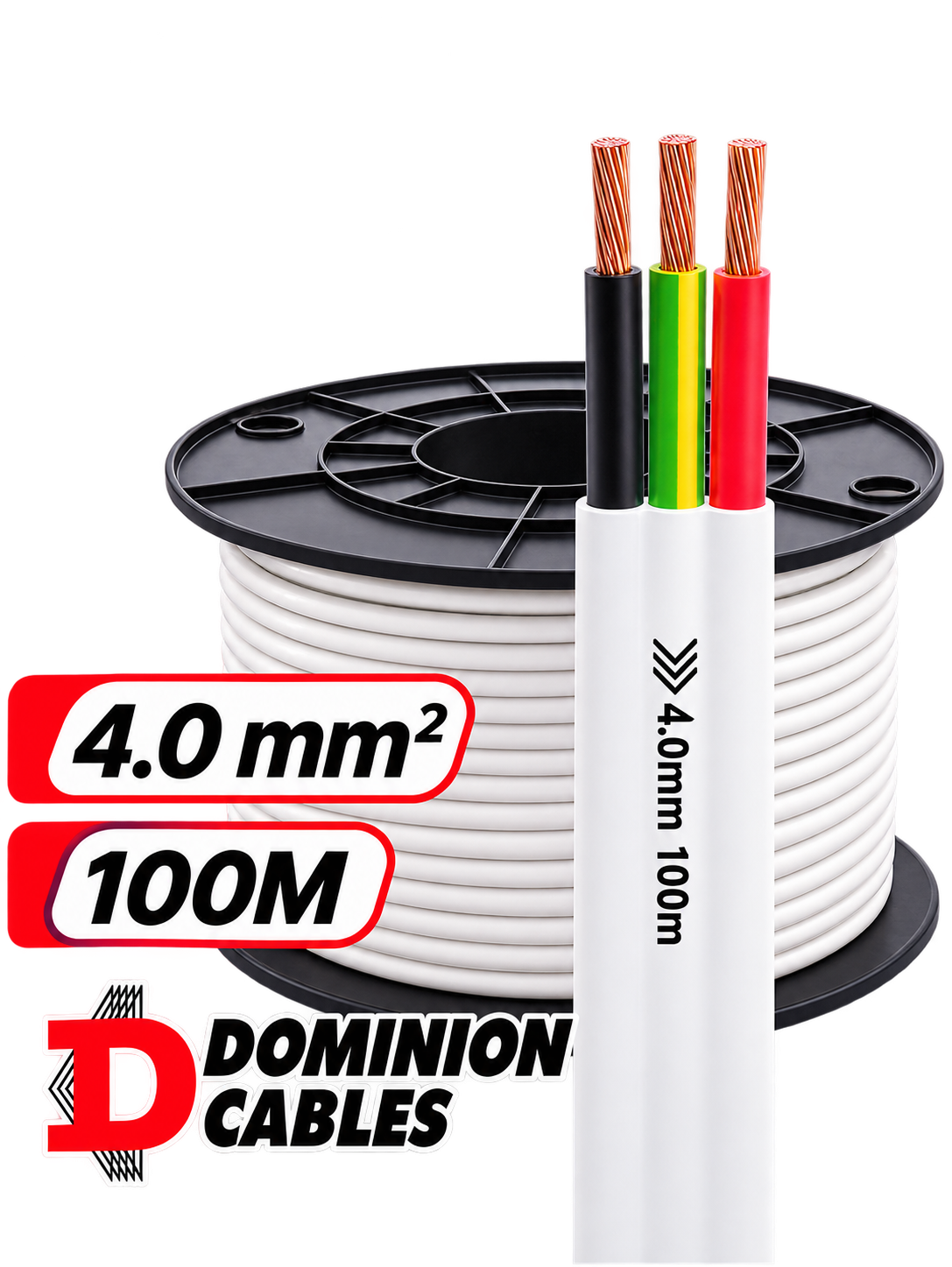

Dominion Cables 4.0mm² 2C+E flat TPS cable is designed for fixed electrical wiring across residential, commercial and industrial installations. Supplied on a 100m reel, this twin-and-earth cable uses stranded copper conductors with PVC V90 insulation and a white PVC outer sheath. Rated at 450/750V and manufactured to AS/NZS 5000.2, it provides a practical option for circuits requiring a larger conductor size than standard 1.5mm² or 2.5mm² TPS. Final cable selection should always consider circuit load, installation method, voltage drop, environmental conditions and applicable New Zealand electrical requirements.
4.0mm TPS Cable Specifications
| Specification | Details |
|---|---|
| Brand | Dominion Cables |
| Product | Flat TPS Twin & Earth |
| SKU | DC359 |
| Configuration | 2C+E / 3 conductors |
| Conductor size | 4.0mm² |
| Conductor construction | 7/0.85 stranded copper |
| Conductor material | Copper |
| Insulation | PVC V90 |
| Core colours | Red, Black, Green/Yellow |
| Sheath | White PVC 3V-90 |
| Voltage rating | 450/750V |
| Reel length | 100m |
| Nominal overall dimensions | 6.5 × 14.0mm |
| Approximate mass | 220kg/km |
| Minimum installed bending radius | 85mm |
| Maximum operating temperature | 90°C |
| Standard | AS/NZS 5000.2 |
Typical Applications
4.0mm² TPS cable may be used for suitable higher-load fixed-wiring circuits in domestic, commercial and industrial electrical installations where the circuit design calls for a larger conductor size.
Dominion Cables specifies its flat 2C+E TPS range for general wiring installed unenclosed, in conduit, buried direct or in underground ducts where the cable is not subject to mechanical damage.
The correct cable size depends on the individual installation. Circuit current, protective device selection, cable length, voltage drop, grouping, thermal insulation, ambient conditions and installation method should all be considered before installation.
Compliance & Documentation
Dominion Cables 4.0mm² flat TPS cable is manufactured to AS/NZS 5000.2 and rated at 450/750V. The manufacturer specifies PVC V90 insulation, a PVC 3V-90 sheath and a maximum operating temperature of 90°C.
Refer to the current Dominion Cables technical documentation, applicable New Zealand electrical standards and project requirements when specifying or installing this cable.
Delivery & Trade Orders
CoreGrid360 supplies electrical products throughout New Zealand. The 4.0mm² 2C+E product is listed as SKU DC359, with stock quantity subject to availability.
For multiple reels, larger projects or ongoing electrical supply requirements, contact CoreGrid360 to confirm current stock and discuss project pricing.
