1.0mm 3C Yellow TPS (All Solid) (R/W/B) | 100m
STOCK QUANTITY MAY VARY, SUBJECT TO AVAILABILITY. PLEASE CONTACT US FOR ACCURATE STOCK QUANTITY & TRADE PRICING.
Got questions?
Feel free to get in touch
Couldn't load pickup availability

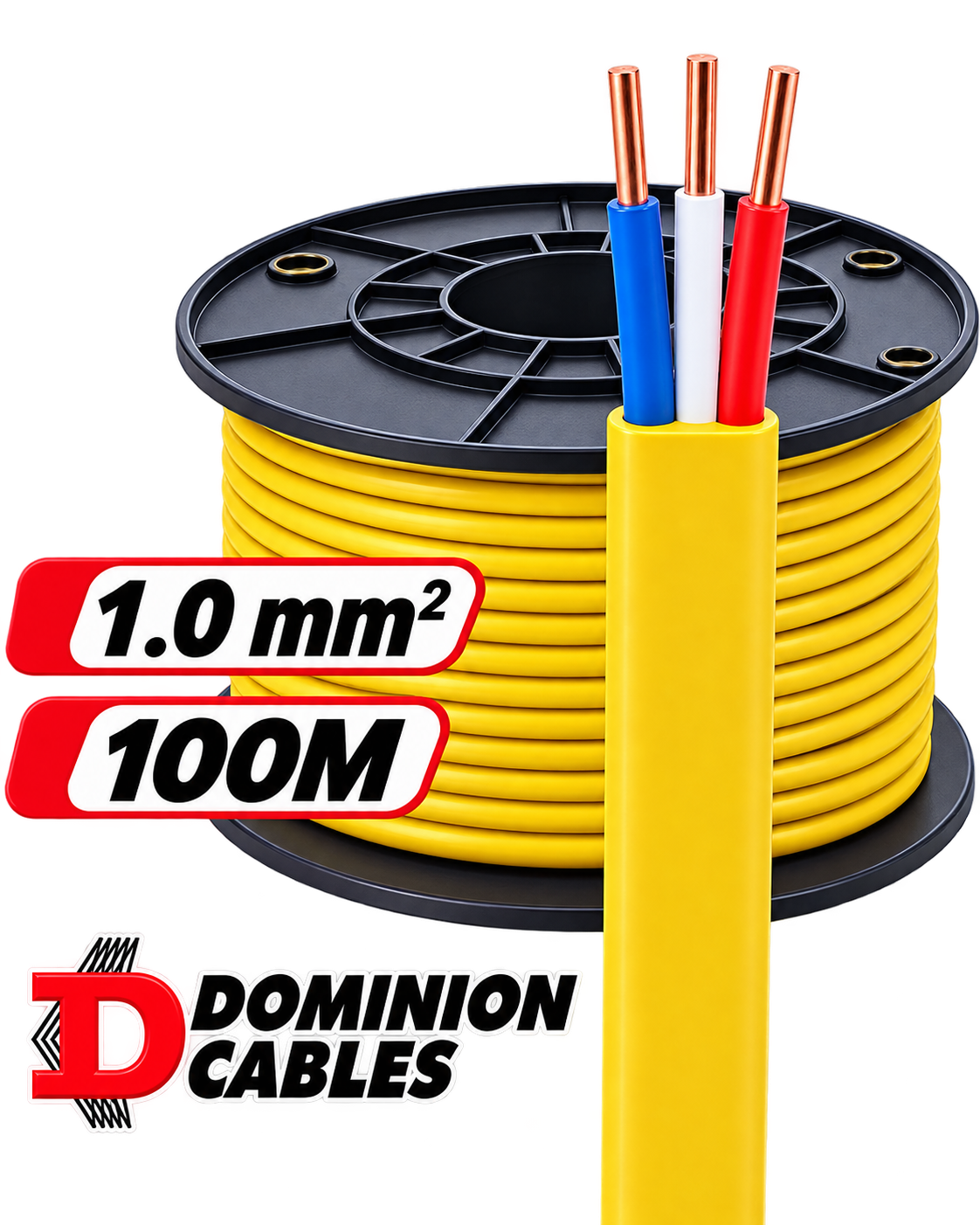

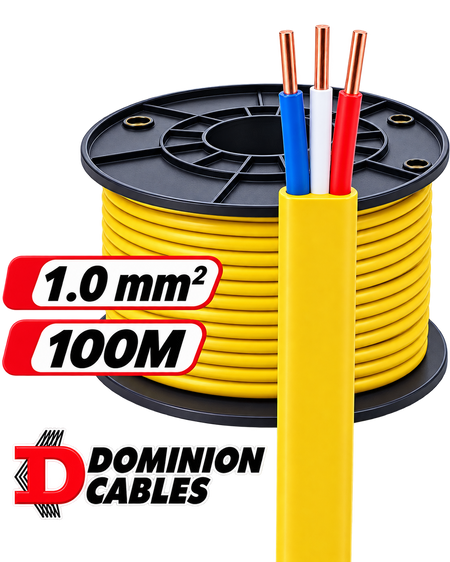

1.0mm 3 Core Yellow TPS Cable 100m | Dominion Cables
Dominion Cables 1.0mm² 3 Core Yellow TPS cable is designed for fixed electrical wiring where three insulated conductors are required without an earth conductor. Supplied on a 100m reel, it features red, white and blue copper cores with PVC V90 insulation and a distinctive yellow PVC outer sheath for easy identification. Rated at 450/750V and manufactured to AS/NZS 5000.2, this cable is commonly used in suitable lighting switching and control applications. Cable selection and installation should always comply with the circuit design, applicable New Zealand electrical requirements and project specifications.
1.0mm 3 Core Yellow TPS Cable Specifications
| Specification | Details |
|---|---|
| Brand | Dominion Cables |
| Product | 3 Core Flat TPS |
| SKU | DC309L |
| Configuration | 3 Core – no earth |
| Conductor size | 1.0mm² |
| Conductor type | Solid copper |
| Core colours | Red, White, Blue |
| Insulation | PVC V90 |
| Outer sheath | Yellow PVC |
| Voltage rating | 450/750V |
| Reel length | 100m |
| Standard | AS/NZS 5000.2 |
The current CoreGrid360 listing identifies the product as DC309L, with red, white and blue cores, a yellow sheath, 450/750V rating and a 100m reel.
Typical Applications
1.0mm² 3 Core Yellow TPS is commonly used in suitable fixed-wiring applications where three insulated conductors are required, including two-way lighting switching, multi-way switching and some lighting control or sensor circuits.
The red, white and blue core identification and yellow outer sheath help distinguish this three-core switching cable from standard twin-and-earth TPS.
This cable does not include an earth conductor. Where an earth conductor is required by the circuit or equipment, it must be provided in accordance with the applicable electrical requirements and installation design.
Cable suitability should always be confirmed against the circuit load, installation method, protective devices, voltage drop and applicable New Zealand standards.
Compliance & Documentation
This 1.0mm² 3 Core TPS cable is listed as manufactured to AS/NZS 5000.2 with a 450/750V voltage rating and PVC V90 insulation.
Three-core R/W/B flat TPS of this type is a recognised NZ cable configuration, with comparable manufacturer documentation specifying copper conductors, PVC insulation, PVC sheath, red/white/blue cores and a light-yellow outer sheath.
Installers should refer to current manufacturer documentation, project requirements and applicable New Zealand electrical standards before installation.
Delivery & Trade Orders
CoreGrid360 supplies electrical products throughout New Zealand. This 1.0mm² 3 Core Yellow TPS is listed as SKU DC309L and supplied on a 100m reel.
freight added at checkout for most other orders.
For multiple reels, project quantities or ongoing electrical supply requirements, contact CoreGrid360 to confirm availability and discuss project pricing.
