6.0mm TPS 2C+E Flat Cable 100m | Dominion Cables

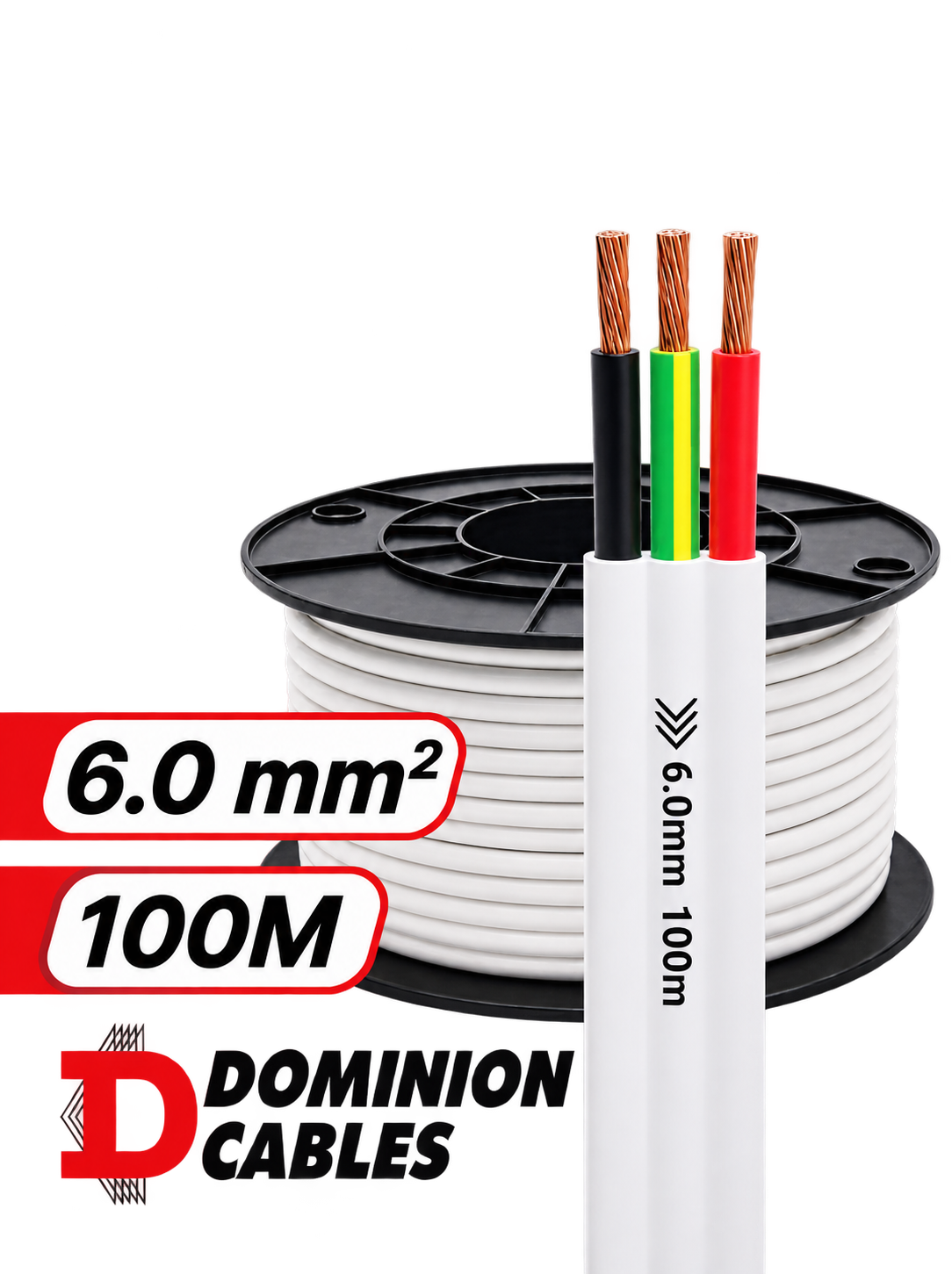

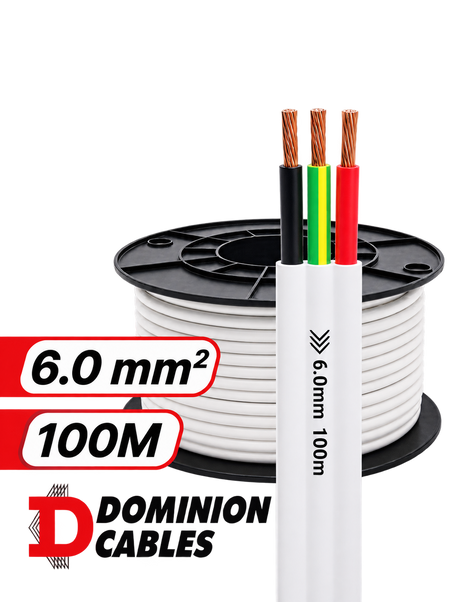

Dominion Cables 6.0mm² 2C+E flat TPS cable is designed for fixed electrical wiring in residential, commercial and industrial installations where a larger conductor size is required. Supplied on a 100m reel, this twin-and-earth cable features stranded copper conductors, PVC V90 insulation and a white PVC outer sheath. It is rated at 450/750V and manufactured to AS/NZS 5000.2. The 6.0mm² conductor size makes it suitable for appropriately designed higher-load circuits, subject to circuit demand, installation method, voltage drop, environmental conditions and applicable New Zealand electrical requirements.
6.0mm TPS Cable Specifications
| Specification | Details |
|---|---|
| Brand | Dominion Cables |
| Product | Flat TPS Twin & Earth |
| SKU | DC369 |
| Configuration | 2C+E / 3 conductors |
| Conductor size | 6.0mm² |
| Conductor construction | 7/1.04 stranded copper |
| Conductor material | Copper |
| Insulation | PVC V90 |
| Core colours | Red, Black, Green/Yellow |
| Sheath | White PVC 3V-90 |
| Voltage rating | 450/750V |
| Reel length | 100m |
| Nominal overall dimensions | 7.1 × 15.2mm |
| Approximate mass | 270kg/km |
| Minimum installed bending radius | 95mm |
| Maximum operating temperature | 90°C |
| Standard | AS/NZS 5000.2 |
Typical Applications
6.0mm² TPS cable is commonly specified for suitable higher-load fixed-wiring circuits in residential, commercial and industrial electrical installations where the electrical design requires additional conductor capacity.
Dominion Cables specifies its flat 2C+E TPS range for general wiring installed unenclosed, in conduit, buried direct or in underground ducts where the cable is not subject to mechanical damage.
The correct cable size must be determined for each circuit. Design current, protective device selection, cable length, voltage drop, installation method, grouping, thermal insulation and ambient conditions can all affect conductor selection.
Compliance & Documentation
Dominion Cables 6.0mm² flat TPS cable is manufactured to AS/NZS 5000.2 and rated at 450/750V. The manufacturer specifies PVC V90 insulation, a PVC 3V-90 outer sheath and a maximum operating temperature of 90°C.
For specification or installation, refer to current Dominion Cables technical documentation, applicable New Zealand electrical requirements and the requirements of the individual project.
Delivery & Trade Orders
CoreGrid360 supplies electrical products throughout New Zealand. The 6.0mm² 2C+E flat TPS cable is listed as SKU DC369 and supplied on a 100m reel, with stock quantity subject to availability.
For multiple reels, project quantities or ongoing electrical supply requirements, contact CoreGrid360 to confirm current availability and discuss project pricing.
