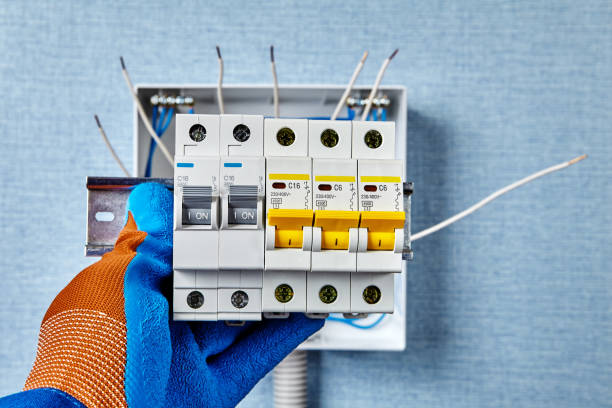

10 Amp MCB Base Guide for Safe Boards

A 10 amp MCB is a common safety part in homes and small shops. It protects light circuits, small socket runs, and low-load gear. But the breaker only works well when the mcb base is a good fit. In most boards, that means the DIN rail, busbar, and supports that hold the breaker in place. Good fit, correct torque, and neat wiring help stop trips, heat, and loose links.

What a 10 Amp MCB Does and Why the Base Matters

A 10 amp MCB trips when load is too high or when a short circuit occurs. It gives repeatable protection and easy shutoff. The physical link is where many faults start.

The mcb base gives:

• firm mount
• line-up for busbar or feeder links
• insulation and space
• hold so the breaker does not move over time

If the base is poor or not matched, you may see:

• hot terminals
• arc marks
• random trips from bad contact
• melted plastic near the mount

MCB Base Plate Types and Where You'll See Them

When people say mcb base, they may mean different parts of the board. Common MCB base plate types are:

1) DIN Rail Base

Most miniature breakers clip on a standard DIN rail in the distribution board. This is the most common miniature circuit breaker mount.

Pros: fast install, standard parts, easy swap Watch-outs: rail fit, end stops, and brand fit

2) Plug-In / Stab-In Bases

A plug in mcb fits into a socket or stab link in some panel systems.

Pros: quick swap, neat wiring Watch-outs: must match the panel system; worn contacts can make heat

3) Fixed Base / Backplate Assemblies

Some boards use a molded base/backplate with busbar paths and breaker spots.

Pros: neat layout, set spacing Watch-outs: less room to change breaker types later

Tip: Check the board's mounting rules. In many systems, the base is the DIN rail, busbar, and insulators together.

Miniature Circuit Breaker Mounting Basics

A simple DIN rail mounting guide starts with fit and clearance:

• Use the rail type and size named for the board
• Keep the rail straight and fixed firm
• Fit end stops so breakers do not slide side to side
• Keep phase and neutral apart as the board needs

Even if breakers clip on, do not assume they are secure. Check for movement after install. A breaker that rocks can stress terminals and lead to a breaker base loose connection fix later.

Single Pole vs Double Pole Base

For many light circuits, single pole is enough. In some systems, you may need to break both conductors.

• Single pole vs double pole base: single-pole spaces are narrow; double-pole spaces are wider and carry two poles.
• A double pole mcb can disconnect both line and neutral, based on region and wiring rules. That can help with safe service work.

Actionable check: Confirm your board cutouts, busbar type, and space support a double pole mcb before you buy.

Isolator Switch vs MCB

Homeowners and some installers mix these up. The isolator switch vs mcb difference is simple:

• MCB: protects against overload and short circuit; trips by itself.
• Isolator switch: gives manual shutoff; it does not usually protect from overcurrent.

Best practice in many boards is to use both:

• Main isolator for safe shutoff of a section or board
• Branch MCBs for circuit protection

If you are tracing a fault, do not swap one for the other. The base and busbar layout may also differ.

MCB Base Wiring Diagram: What Correct Looks Like

An MCB base wiring diagram depends on your region and board, but the core steps are the same:

• Incoming supply feeds the busbar or line terminals as built
• Outgoing circuit wires land tight in the breaker terminals
• Neutral and earth go to their own bars unless the system uses a different layout

Key wiring steps:

• Strip only the needed length of insulation
• Push the wire fully in; do not half-clamp it
• Use ferrules for fine-strand wire when the maker says so
• Route wires so sharp bends do not pull on terminals

Use the maker guide and local rules, especially if you are learning how to install breaker base parts in a live distribution board.

Brand Fit: Avoid Costly Mismatches

MCB base brand fit is where many upgrades go wrong. Even on DIN rail systems, fit is not always universal because of:

• busbar tooth pitch and shape
• terminal shape and clamp style
• breaker body width and module size
• panel door space and shrouds

If you mix brands, check that the board and busbar system support it. Some people search for mcb merlin gerin when they replace older parts. In older boards, the safest path is often a like-for-like swap or a proven cross-fit series.

Best tip: Match board brand, busbar, and breaker series where you can. If it only looks like a fit, do not trust it.

Heat and Failure: MCB Base Overheating Causes and Fixes

Heat near the base or terminal is a major warning sign. Common MCB base overheating causes include:

• loose terminal screw or weak clamp force
• wire too small for the load
• damaged busbar tooth or dirty contact
• mixed parts that do not sit well together
• overloaded circuit, even if it does not trip right away

Fix approach:

1. Shut off power and verify it is dead.
2. Inspect for stains, melted plastic, or pitting.
3. Re-terminate wires the right way and swap damaged parts.
4. Check that the breaker rating fits the circuit plan.

A proper breaker base loose connection fix is seldom just a quick tighten if heat has already done damage. Heat can weaken spring force and plastic.

Terminal Torque: Do Not Guess

One of the most missed details is the MCB base terminal torque specification. Too little torque can make heat. Too much torque can bend clamps or crack parts.

Practical steps:

• Use a torque screwdriver when you can
• Follow the maker spec for that exact breaker and base
• Re-check terminations after first use if the maker asks for it

This can prevent many faults in an mcb switch board.

Material Quality Features: What to Look For

Not all bases and boards age the same. Good MCB base material quality features include:

• heat-safe, self-extinguishing plastic
• solid, rust-safe busbar conductors
• strong clamp design with good contact area
• finger-safe shrouds
• firm DIN rail clips that do not wear out fast

If you are buying parts, choose certified parts from trusted makers, not the cheapest item.

Upgrades and Ratings: 63A, 70A, and What They Mean

People often compare ratings when they expand a panel. While this article is about a 10A device, you may see 63a mcb and 70a circuit breaker searches for mains or sub-feeds.

Key points:

• Higher ratings are usually for feeders or main protection, not small light circuits.
• Do not raise the rating unless cable size and protection are also upgraded.
• The base, busbar, and case must be rated for the heat and fault load.

If you expand a distribution board, check the busbar rating and the free space before adding larger breakers.

MCB Base Replacement Steps

When you replace an MCB or base parts, use MCB base replacement steps that put safety first:

• Shut off and lock out supply if you can
• Confirm the right replacement breaker or base type
• Check the DIN rail, end stops, and busbar
• Replace heat-damaged busbar parts or shrouds
• Re-terminate wires neatly and to spec
• Test function and check circuit labels

If you are not qualified to work in panels, hire a licensed electrician.

MCB Base Price Comparison: How to Buy Smart

A useful MCB base price comparison is not only about cost. It is about fit and life.

Think about:

• Is it a full board base/backplate or just a rail part?
• Does it include busbar, shrouds, and end stops?
• Is it certified and easy to support locally?
• Does it fit your breaker series?

For many users, the best breaker base for distribution board is the OEM system made for that enclosure. It lowers the risk of mismatch.

MCB Base Safety Checklist Before You Energize

Use this quick MCB base safety checklist:

• Breakers clipped in firm, with no side move
• Correct pole type installed
• Busbar fully seated; shrouds in place
• No bare copper outside terminals
• Wires sized right and not damaged
• Terminal screws torqued to spec
• No burn marks, bent plastic, or odd smell
• Circuit names and ratings are clear

Takeaway

A 10 amp MCB protects your circuit, but the mcb base often decides real-world life. The mount, busbar link, and wire terminations matter as much as the breaker. Focus on fit, torque, heat control, and brand match. If you see heat or loose links, inspect at once and replace damaged parts.

Browse our range of Circuit Protection MCB's for your next project, or Contact Us if you'd like advice on selecting the best Plugs & Sockets for your application. Our team is here to help New Zealand electricians source reliable products at competitive trade prices.

Q&A

Question: Can any DIN rail MCB be used in any distribution board?

Short answer: Not always. A breaker may clip on, but busbar pitch, terminal shape, module width, shrouds, and door space may still not fit. Check board brand, busbar system, and breaker series before install.

Question: Why can a loose MCB base or terminal cause heat?

Short answer: A loose link raises resistance at the contact point. That makes heat, which can stain terminals, harm busbars, weaken plastic, and cut spring force. If heat damage is visible, replace damaged parts, not just retighten.

Question: Is a 10 amp MCB right for every small circuit?

Short answer: No. A 10 amp MCB is common for light circuits, small socket runs, and low-load gear, but the right rating depends on cable size, load, code, and protection plan. The breaker, wire, busbar, and case must all suit the job.

Question: What is the main difference between an isolator switch and an MCB?

Short answer: An MCB gives automatic protection from overloads and short circuits. An isolator switch gives manual shutoff and usually no overcurrent protection. Many boards use both: the isolator shuts down the board, and the MCBs protect each circuit.

Question: What should be checked before energizing an MCB switch board after replacement?

Short answer: Check that breakers are clipped in firm, end stops and shrouds are in place, the busbar is seated, there is no bare copper outside terminals, wires are the right size and in good shape, screws are torqued to spec, there are no burn marks or odd smells, and the circuits are labeled.
